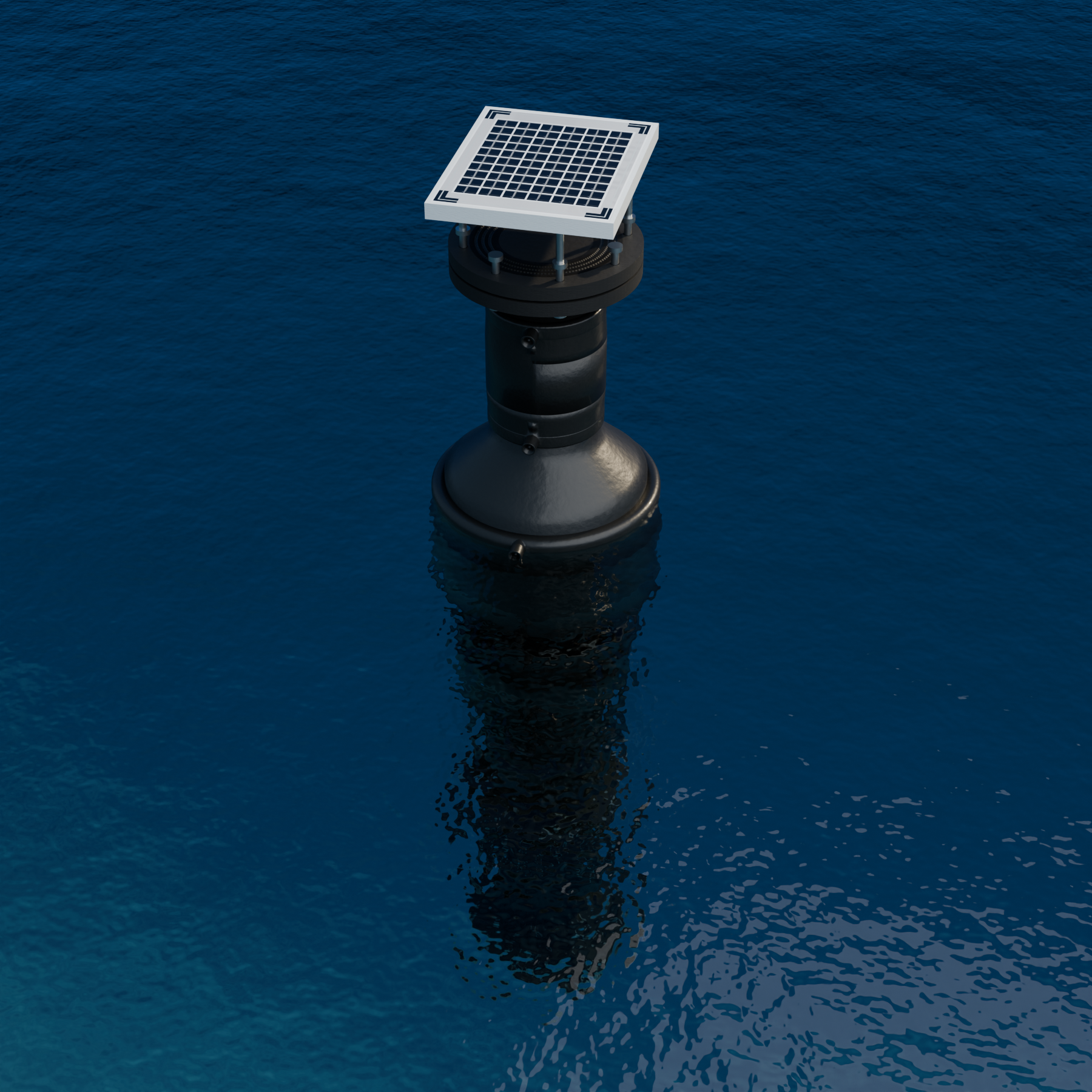

• netH₂O B100-5 buoy220 with 5 W solar panel — perspective in-water Blender render

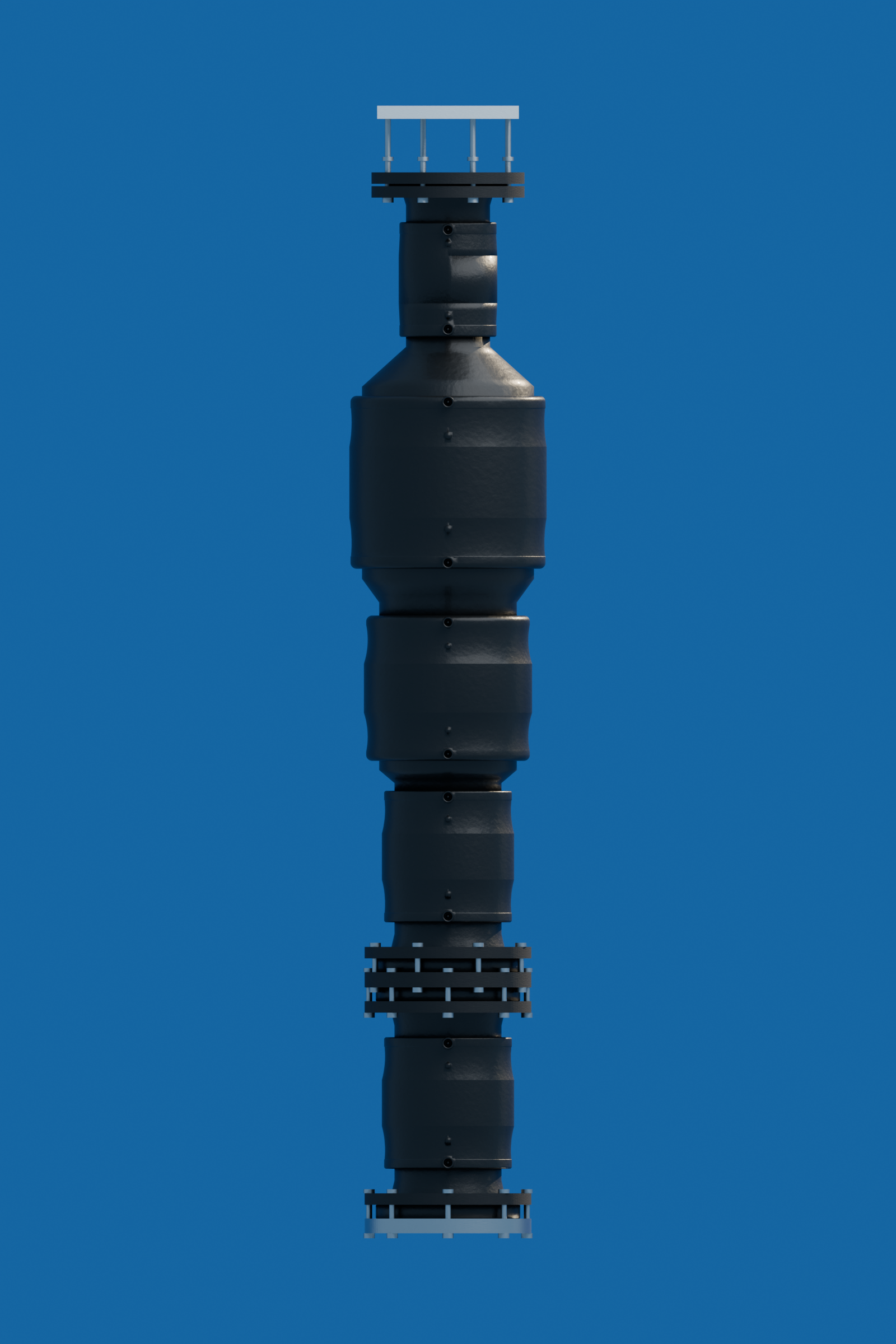

  • netH₂O B100-5 buoy220 with 5 W solar panel — orthographic side Blender render
1 2

Elements Works

netH₂O B100-5 — Solar Smart Water-Quality Buoy

netH₂O B100-5 — Solar Smart Water-Quality Buoy

€3,200.00 EUR
€3,200.00 EUR
Sale Sold out

Contact us through the web contact widget if you need information, customization or pricing for special applications or volume purchases, or if the standard purchase process does not work for you for any reason.

The netH₂O B100-5 is a compact solar-powered smart buoy for continuous water-quality monitoring. It combines a 100 Wh battery, a 5 W solar PV panel, cellular connectivity and the Sensorica cloud data pipeline in a small autonomous platform.

Thanks to its advanced low-power control system, the B100-5 is designed for indefinite field operation under suitable solar exposure and configured sampling/upload schedules: the buoy wakes, samples, stores and periodically uploads data to the cloud, where it can be accessed through the Sensorica Data Platform.

Its water sampling system implements a patent-pending innovation.

The base platform includes:

  • 5 W solar PV panel for continuous energy harvesting.
  • LiFePO4 battery, approximately 100 Wh, managed by the onboard control system.
  • Advanced duty-cycle control for low-power sampling, local buffering and scheduled cloud upload.
  • Cellular connectivity for periodic automatic data transmission.
  • Cloud data access through the Sensorica Data Platform.
  • GPS positioning and configurable acquisition/transmission schedules.
  • Temperature sensor and IMU for buoy status, motion and environmental context.
  • Pre-arranged for water-quality sensor integration on a shared RS-485 / Modbus chain.

Typical applications include aquaculture, mussel farming, coastal monitoring, lakes, reservoirs, ports, marinas and research deployments where a small autonomous buoy is preferred over a larger platform.

With or without application packs, the buoy is ideal as a coastal drifter: it can report its position and transmit it to shore over LTE. The solar panel supports indefinite operation under suitable solar exposure. Because its above-water component is very small relative to its submerged body, the buoy naturally follows the currents. For stronger current following, we can integrate additional current-intercepting components—just contact us.

Application packs (sold separately):

------------------

Prices are net of VAT, applied at checkout, and subject to change without notice. Built to order; delivery time agreed at order time. Shipping is computed at checkout.
